Автомагнитола SOUNDMAX SM-CCR3030. Инструкция на русском языке

SM-CCR3030
CASSETTE RECEIVER                                                   ?K??o???? ?o?jOo?
Instruction manual                                        ??????????? ?? ????????????

Dear customer!
Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully
before connecting, operating and/or adjusting the product and keep the manual for reference in the future.
Table of contents
Table of contents ....................................................................................................................................................................................2
Important safeguards ...........................................................................................................................................................................3

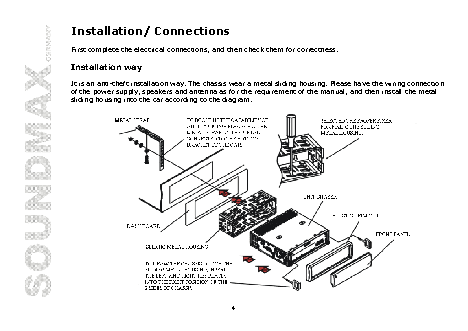

Installation/ Connections.....................................................................................................................................................................4
Panel controls ..........................................................................................................................................................................................7
Function of controls.............................................................................................................................................................................10
Cleaning...................................................................................................................................................................................................12
Troubleshooting guide.........................................................................................................................................................................13
Specification...........................................................................................................................................................................................14
2

Important safeguards
- Read carefully through this manual to familiarize yourself with this high-quality sound system.
- Use only in a 12-volt DC negative-ground electrical system.
- Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.
- When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher
amperage rating may cause serious damage to the unit.
- DO NOT attempt to disassemble the unit.
- Make sure that pins or other foreign objects do not get inside the unit; they may cause malfunctions, or
create safety hazards such as electrical shock or laser beam exposure.
- If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car
becomes normal before operating the unit.
- Keep the volume at a level at which you can hear outside warning sounds (horns sirens, etc.).
- DO NOT open covers and do not repair yourself. Consult the dealer or an experienced technician for help.
- Make sure you disconnect the power supply and aerial if you will not be using the system for a long period
or during a thunderstorm.
- Make sure you disconnect the power supply if the system appears to be working incorrectly, is making an
unusual sound, has a strange smell, has smoke emitting from it or liquids have got inside it. Have a
qualified technician check the system.
- Stop the car before performing any complicated operation.
- The unit is only designed for use with 4 speakers. Do not combine output for use with 2 speakers. Do not
ground negative speaker leads to the chassis ground.
- Do not install the unit in place where it is exposed to direct sunlight (including the faceplate), in order to
avoid high heat.
- The faceplate is a precision piece of equipment that contains sensitive electronic components. Do not
subject it to excessive shock.
- Be careful not to drop or shock the unit strongly, it may break or crack because it contain glass parts.
- When extending the ignition, memory backup or ground cable, use diameter of 0.75 mm (AWG18) or more
automotive grade cable to avoid wire deterioration or damage to the wire coating
3
