8P300Fe/N
LOW FREQUENCY TRANSDUCER
www.beyma.com                                                                          P200 Series

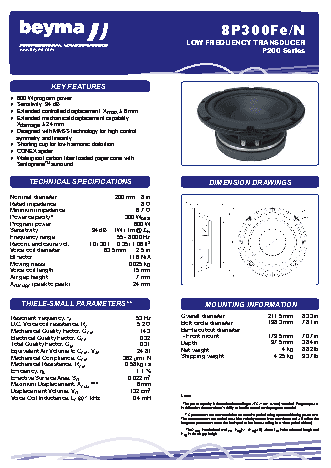

KEY FEATURES
?  600 W program power
?  Sensitivity: 94 dB
?  Extended controlled displacement: X max  ± 6 mm
?  Extended mechanical displacement capability:
X damage  ± 24 mm
?  Designed with MMSS technology for high control,
symmetry and linearity
?  Shorting cup for low harmonic distortion
?  CONEX spider
?  Waterproof carbon fiber loaded paper cone with
Santoprene TM  surround
TECHNICAL SPECIFICATIONS                                         DIMENSION DRAWINGS
Nominal diameter                     200 mm    8 in
Rated impedance                                8 ?
Minimum impedance                            6,7 ?
Power capacity*                          300 W AES
Program power                               600 W
Sensitivity                  94 dB     1W / 1m @ Z N
Frequency range                       55 - 8.000 Hz
Recom. enclosure vol.       10 / 30 l     0,35 / 1,06 ft 3
Voice coil diameter              63,5 mm       2,5 in
Bl factor                                 11,6 N/A
Moving mass                               0,025 kg
Voice coil length                           15 mm
Air gap height                               7 mm
X damage  (peak to peak)                    24 mm
THIELE-SMALL PARAMETERS**                                         MOUNTING INFORMATION
Resonant frequency, f s                      53 Hz           Overall diameter                211,5 mm      8,33 in
D.C. Voice coil resistance, R e              5,2 ?           Bolt circle diameter           198,3 mm      7,81 in
Mechanical Quality Factor, Q ms               14,3           Baffle cutout diameter:
Electrical Quality Factor, Q es               0,32            - Front mount                 179,5 mm      7,07 in
Total Quality Factor, Q ts                    0,31           Depth                            97,5 mm      3,84 in
Equivalent Air Volume to C ms , V as         24,8 l          Net weight                           4 kg      8,82 lb
Mechanical Compliance, C ms             362 µm / N           Shipping weight                   4,25 kg      9,37 lb
Mechanical Resistance, R ms              0,58 kg / s
Efficiency, ? 0                              1,1 %
Effective Surface Area, S d               0,022 m 2
Maximum Displacement, X max  ***             6 mm
Displacement Volume, V d                   132 cm 3
Voice Coil Inductance, L e  @ 1 kHz         0,4 mH           Notes:
* The power capacity is determined according to AES2-1984 (r2003) standard. Program power
is defined as the transducer’s ability to handle normal music program material.
** T-S parameters are measured after an exercise period using a preconditioning power test.
The measurements are carried out with a velocity-current laser transducer and will reflect the
long term parameters (once the loudspeaker has been working for a short period of time).
*** The X max  is calculated as (L vc  - H ag )/2 + (H ag /3,5), where L vc  is the voice coil length and
H ag  is the air gap height.

8P300Fe/N
LOW FREQUENCY TRANSDUCER
www.beyma.com                                                                          P200 Series
LOW & MID FREQUENCY TRANSDUCER

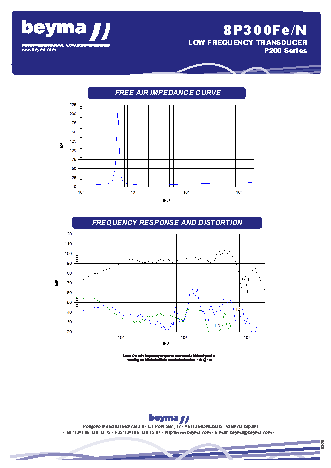

FREE AIR IMPEDANCE CURVE
[?]
[Hz]
FREQUENCY RESPONSE AND DISTORTION
[dB]
[Hz]
Note: On axis frequency response measured with loudspeaker
standing on infinite baffle in anechoic chamber, 1W @ 1m
