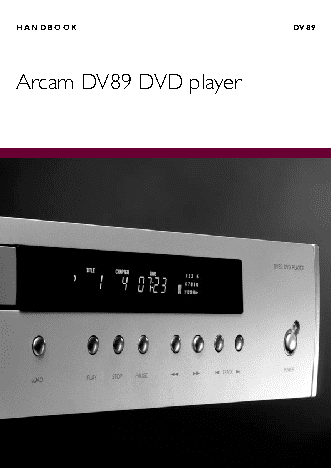

H A N D B O O K                                                                                    DV89
Arcam DV89 DVD player

Safety guidelines
Safety instructions                           9. Power sources
This product is designed and manufactured to meet strict   Only connect the appliance to a power supply of the type
quality and safety standards. However, you should be aware of   described in the operating instructions or as marked on the
the following installation and operation precautions:  appliance.
10. Power-cord protection
1. Take heed of warnings and instructions     Power supply cords should be routed so that they are not likely
You should read all the safety and operating instructions   to be walked on or pinched by items placed upon or against
before operating this appliance. Retain this handbook for future   them, paying particular attention to cords and plugs, and the
reference and adhere to all warnings in the handbook or on the   point where they exit from the appliance.
appliance.
11. Grounding
2. Water and moisture
The presence of electricity near water can be dangerous.   Ensure that the grounding means of the appliance is not
Do not use the appliance near water – for example next to a   defeated.
bathtub, washbowl, kitchen sink, in a wet basement or near a   12. Power lines
swimming pool, etc.                           Locate any outdoor antenna/aerial away from power lines.
3. Object or liquid entry                     13. Non-use periods
Take care that objects do not fall and liquids are not spilled into   If the unit has a standby function, a small amount of current will
the enclosure through any openings. Liquid filled objects such   continue to flow into the equipment in this mode. Unplug the
as vases should not be placed on the equipment.  power cord of the appliance from the outlet if left unused for a
long period of time.
4. Ventilation
Do not place the equipment on a bed, sofa, rug or similar   14. Abnormal smell
soft surface, or in an enclosed bookcase or cabinet, since   If an abnormal smell or smoke is detected from the appliance,
ventilation may be impeded. We recommend a minimum   turn the power off immediately and unplug the unit from the
distance of 50mm (2 inches) around the sides and top of the   wall outlet. Contact your dealer immediately.
appliance to provide adequate ventilation.
15. Servicing
5. Heat                                       You should not attempt to service the appliance beyond that
Locate the appliance away from naked flames or heat   described in this handbook. All other servicing should be
producing equipment such as radiators, stoves or other   referred to qualified service personnel.
appliances (including amplifiers) that produce heat.
16. Damage requiring service
6. Climate                                    The appliance should be serviced by qualified service personnel
The appliance has been designed for use in moderate   when:
climates.
A.  the power-supply cord or the plug has been damaged, or
7. Racks and stands                            B.  objects have fallen, or liquid has spilled into the
Only use a rack or stand that is recommended for use with   appliance, or
audio equipment. If the equipment is on a portable rack it   C.  the appliance has been exposed to rain, or
should be moved with great care, to avoid overturning the   D.  the appliance does not appear to operate normally or
combination.                                      exhibits a marked change in performance, or
E.  the appliance has been dropped or the enclosure
8. Cleaning                                       damaged.
Unplug the unit from the mains supply before cleaning.
The case should normally only require a wipe with a soft,   Safety compliance
damp, lint-free cloth. Do not use paint thinners or other   This product has been designed to meet the EN60065
chemical solvents for cleaning.               international electrical safety standard.
We do not advise the use of furniture cleaning sprays or
polishes as they can cause indelible white marks if the unit is
subsequently wiped with a damp cloth.
DV89                                                                                                                                                                                                                         DV89
2                                                                                                                                                                                                                            3

Using this handbook                                              Contents
Safety guidelines ...................................................... 2
Safety instructions............................................... 2
Safety compliance............................................... 2
This handbook has been designed to give you all the   Using this handbook.................................................. 3
information you need to install, connect, set up and use the   Safety ................................................................ 3
Arcam DiVA DV89. The remote control handset supplied with   Disc types supported .......................................... 3
the equipment is also described.               Installation ...............................................................4
It may be that the DV89 has been installed and set up as part   Positioning the unit.............................................. 4
of your Hi-Fi installation by a qualified Arcam dealer. In this   Connecting outputs:  Video .................................. 4
case, you may wish to skip the sections of this handbook   Component video ................................................ 4
dealing with installation and setting up the unit. Use the   RGB output ......................................................... 4
Contents list to guide you to the relevant sections.  S-Video............................................................... 4
Composite video ................................................. 4
Safety                                              Progressive video................................................ 5
Connecting Digital audio ...................................... 5
Safety guidelines are set out on the preceding page of this   Connecting Analogue audio.................................. 5
handbook.
Remote Control input........................................... 5
Many of these items are common sense precautions, but for   Connecting to a power supply .............................. 5
your own safety, and to ensure that you do not damage the
unit, we strongly recommend that you read them. This is a   Configuring your DVD player.....................................6
class 1 product and requires an earth connection.   Introduction ........................................................ 6
Switching the power on ....................................... 6
Disc types supported                                Obtaining a TV picture ......................................... 6
Using the Set-up menus ....................................... 6
The ARCAM DV89 DVD player plays a range of disc types.   Operational setup................................................ 6
These include:                                      Video setup ........................................................ 7
?  DVD-video (single region, set at factory)       Audio setup ........................................................ 8
?  DVD-audio                                       Speaker Configuration ......................................... 9
?  CDDA (‘normal’ audio-CDs) including HDCD decoding,   Delay setup ........................................................ 9
CD-R, and CD-RW                                 Trim setup ........................................................ 10
?  Video CD, including variants such as CVCD, SVCD and   Access setting .................................................. 10
DVCD                                            Completing the set-up........................................ 10
?  MP3 and WMA audio files, when on a CD-ROM or   Basic use of your DVD player..................................11
CD-R/CD-RW (some restrictions apply)            Introduction ...................................................... 11
?  Picture CDs (JPEG image files).                 Front panel controls........................................... 11
Playing a disc ................................................... 11
Using the remote control ......................................... 12
Advanced controls............................................. 13
Advanced features .................................................14
Advanced DVD and VCD features.............................. 14
Jumping to a particular point.............................. 14
Hidden groups .................................................. 14
This product incorporates copyright protection technology that is   Special playback modes .................................... 14
protected by method claims of certain U.S. patents and other intellectual
property rights owned by Macrovision Corporation and other rights   Peforming an A-B repeat .................................... 14
owners. Use of this copyright protection technology must be authorized   To program a special sequence.......................... 15
by Macrovision Corporation, and is intended for home and other   Advanced MP3/WMA/JPEG and audio CD features .... 16
limited viewing uses only unless otherwise authorized by Macrovision   Screen layout.................................................... 16
Corporation. Reverse engineering or disassembly is prohibited.
Player mode ..................................................... 16
Browsing the disc (Browse mode)....................... 16
Consumers should note that not all high definition television sets are fully   Programmed playback (Audio CDs)..................... 17
compatible with this product and may cause artifacts to be displayed
in the picture. In case of 525 progressive scan picture problems, it   Programmed playback (CD-ROM) ........................ 17
is recommended that the user switch the connection to the ‘Standard   Shuffle and Repeat ............................................ 17
Definition’ output. If there are questions regarding TV set compatibility
with this model 525p DVD player, please contact Arcam Customer   Reference..............................................................18
Support Department.                               Troubleshooting ...................................................... 18
Problems with remote controls........................... 18
Manufactured under license from Dolby Laboratories.   Problems with video output ................................ 18
“Dolby”, “Pro Logic”, “MLP Lossless”, and the double-D symbol are   Problems with audio output................................ 19
trademarks of Dolby Laboratories.                   Problems with disc playability............................. 19
Confidential unpublished works, Copyright © 1992–1998 Dolby   Before contacting customer services.................. 19
Laboratories. All rights reserved.                Technical specifications........................................... 20
Guarantee .............................................................. 21
Manufactured under license from Digital Theater Systems, Inc.   On line registration.................................................. 21
US Pat. No. 5,451,942, 5,956,674, 5,974,380, 5,978,762 and
other world-wide patents issued and pending. “DTS” and “DTS Digital
DV89                     Surround” are registered trademarks of Digital Theater Systems, Inc.                DV89
2                        Copyright © 1996, 2000 Digital Theater Systems, Inc. All rights reserved.            3
